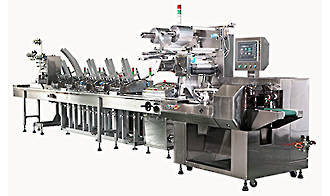

Durable, high productivity and low-noise, due to the 4 independent servo motors with electronic control to enable 24 hours of nonstop high speed packaging
User-friendly machine with interface control system on a 10.4 inch colorful monitor
Dialogue type screen provides maximum operational convenience and is easy to learn
Comply with PIC/S-GMP specification and also equips USB port and automatic saving log
50 sets of recipe (bag length, temperature, speed, feeding position, film tension and cutting position) helps reduce the losses, providing high efficiency
High compatibility with different feeding systems: Desiccant dispenser, Card Magazine, Product Orientation Systems (for round product), Row distribution systems (for bar-shape product) and belt type feeding system etc.
Applicable to package many different products, including cake, chocolate, credit card, ice cream, biscuit, frozen food and similar, arriving in regimented rows from the processing production line
Specifications
Operating Speed: 30-250 pack/min
Bag Length: 70mm-180mm
Maximum Film Width: 350mm
Maximum Roll Diameter: 300mm
Product Width Range: 20mm-120mm
Product Height Maximum: 50mm
Main Drive Motor: 1 HP
Heater: 1600W for center sealer, 1200W for end sealer
Options
Auto splicer
Bar code reader
Rejections function
In Line Feeder System
Offers high speed and flexibility to the packaging line. Multiple belt conveyor system with automatic control of the speed of each belt enhances the capacity and efficiency.
The speed of ILF is synchronized to the flow wrapper by the vacuum belt driven by the servo motor. The system is used for high speed in-line feeding of regular shaped product such as cookies ,chocolate bars. etc.
