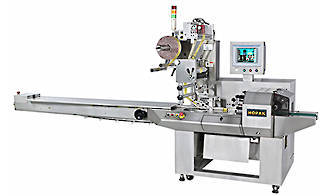

Hopak HP 350 4V / 450 4V / 600 4V
|
Horizontal High Speed Servo Flow Wrapper
|
You might also be interested in ...
Enquire for price
Micro-Computerized High Speed Horizontal Flow Wrapper
- 4 axes Servo driving system:End sealing unit, film transportation, feeding chain and film tension are driven by servo motors independently, making it durable, high productivity and low noise
- User-friendly machine with interface control system on a 10.4 inch colorful monitor
- 50 sets of recipe (bag length, temperature, speed, feeding position, film tension and cutting position) helps reduce losses while providing high efficiency
- Self-diagnosis function an error message will show on screen for easy troubleshooting
- Overload sensing function for each servo motor prevents the parts and product from being damaged in advance
Options- Auto-feeding system
- Date coder
- Stainless steel machine frame
- Auto-splicer
- No-Product-No-Go
- No-Gap-No-Seal
- CE or UL standards
SpecificationsModel: HP-350-4V
- Operating Speed: 20-300 pack/min
- Bag Length: 50mm - 750mm
- Maximum Film Width: 350mm
- Max Roll Diameter: 300mm
- Product Width: 20mm - 120mm
- Product Height: 60mm
- Machine Dimensions: Length 3900mm X Width 1090mm X Height 1600mm
Model: HP-450-4V- Operating Speed: 20-300 pack/min
- Bag Length: 50mm - 750mm
- Maximum Film Width: 450mm
- Max Roll Diameter: 300mm
- Product Width: 20mm - 120mm
- Product Height: 60mm
- Machine Dimensions: Length 3900mm X Width 1150mm X Height 1600mm
Model: HP-600-4V
