Description


Features
  • Compact construction for reducing space required
  • Bag length indication ensures fast and accurate length adjustment
  • Equipped with precision photocell sensor for film tracing control
  • The machine stops automatically when the film runs out
  • Three sets of temperature controllers
  • All product-contacted areas are in stainless steel or plastic construction
Options
  • Date coder
  • Stainless steel machine frame
  • Gusset device
  • Labeler
  • CE or UL standards
  • Optional feeding systems are available for various products
Specifications

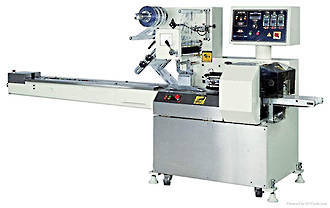

Model HP-350H
  • Operating Speed: 20 - 150 pack/min
  • Bag Length: 80mm - 320mm
  • Maximum Film Width: 350mm
  • Product Width: 20 - 120mm
  • Product Height Maximum: 60mm
  • Main Drive Motor: 1 HP
  • Machine Dimensions: Length 3180mm X Width 890mm X Height 1560mm
Model HP-450H
  • Operating Speed: 20 - 150 pack/min
  • Bag Length: 80mm - 320mm
  • Maximum Film Width: 450mm
  • Product Width: 20 - 120mm
  • Product Height Maximum: 60mm
  • Main Drive Motor: 1 HP
  • Machine Dimensions: Length 3180mm X Width 950mm X Height 1560mm
Model HP-600H
  • Operating Speed: 20 - 150 pack/min
  • Bag Length: 100mm - 400mm
  • Maximum Film Width: 600mm
  • Product Width: 80 - 230mm
  • Product Height Maximum: 60mm
  • Main Drive Motor: 1 HP
  • Machine Dimensions: Length 3180mm X Width 1080mm X Height 1560m

  •
