01445

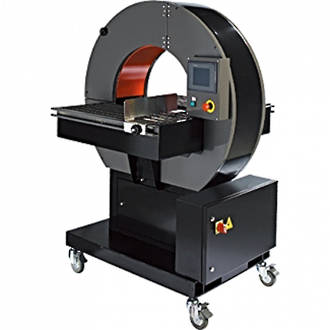

EXTENDGROUP EXR-201

EXTENDGROUP EXR-201
larger imageMove mouse over the image to magnify
Horizontal Wrapper
Enquire
Specifications
  • Belt driven rotation unit
  • Numbers of wraps adjustable from 3 - 20
  • Continuous operating cycle by foot control
  • Adjustable film tension
  • Rotation speed adjustable, up to 100 rpm.
  • Film delivery system with friction roller
  • Pneumatically operated clamping, cutting and welding unit
  • Film width: 76mm (3”)
  • Film thickness: 19 - 35 micron
  • Max. film outer diameter: 178mm (7”)
  • Max. Rectangle: 508mm x 178mm (20”x 7”)
  • Max. Square: 305mm x 305mm (12”x 12”)
  • Min. Square: 102mm x 102mm (4”x 4”)
  • Power Supply: 100/110/220/230/240V., 50/60HZ, 1-Phase.
  • Pneumatic system: 6 ± 1 bar
Options
  • CE Foot Pedal Switch
  • Different sizes available on request.
