Description

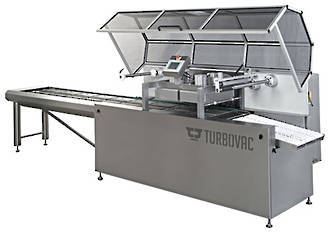

The TPS 1000 and TPS 2000 are especially designed for easy and fast mould changes which consists off relatively light components. The transparant cover allows quick and full access for the mould change, loading and guiding the film and thorough cleaning of the machine. The TPS 2000 has 2 moulds which doubles the production capacity compared to the TPS 1000 or adds flexibility with the installation of 2 different moulds. This only requires changing the settings at the control panel for switching to a different tray dimension. The TPS range can be equipped with a special oxygen Busch pump for gasflush > 21%, a photocell for centering printed film. The loading area can be extended, the exit belt can be motorized and the control unit has connections for auxiliary equipment.

Specifications
  • Machine Dimension: TPS 1000 4350mm x 1180mm x 1550mm TPS 2000 4750mm x 1180mm x 1550mm
  • Work Weight: 850kg
  • Pump: TPS 1000 100mTPS 2000 160m3
  • Cycle Time: 10-15 seconds
  • Voltage: 400V - 3 - 50hZ
  • Power Consumption: TPS 1000 6kW TPS 2000 10kW
  • Air Pressure Required: 6 bar max 400 Ltr/ min
  • Weight: TPS 1000 950kg TPS 2000 1100kg
  • Maximum Tray Dimension: 350mm x 260mm
  • Maximum Tray Height: 25mm - 120mm
  • Maximum Film Width: 450mm
  • Maximum Diameter Film Roll: 440mm
  • Specifications
Options
  • 100m3 Oxygen protected vacuum pump
  • Motorized exit belt
  • Additional loading area, per meter
