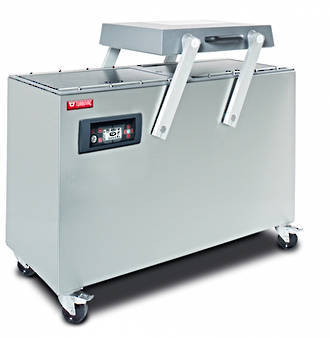

Turbovac new range of double chambers are reliable, durable and offer flexibility in volume production. The machines can be equipped with semi-automatic or automatic cover movement for an even more efficient production. The double chambers can also be equipped with an external pump.

Seal Length: 4 x 600mm
Maximum Product Height: 180mm
Useful Chamber Size: Width 610mm X Depth 510mm X Height 180mm
Outside Dimension: Width 1435mm X Depth 720mm X Height 1040mm
Standard Voltage: 400-3-50Hz
Power Consumption: 4.4kW
Weight: 240kg

Digital Time Control: 1 or 10 programs
Sensor Control: Sensor/ H2O
Seal: Double/ Trenn/ 1-2/ Bi Active
Seal Configuration: 2 x L&L
Gas Option
Pump Capacity: 40m3 - 63m3 - 100m3
Cycle Time: 20-40 seconds

Seal Configuration
