Description

Features
  • After the machine is  manually loaded the cover will close automatically and start the vacuum cycle.
  • After the vacuum cycle the cover will automatically swing to the other working platform while the packaged products will automatically be discharged on the conveyor belt and be transported into the immersion tank which will automatically start the short immersion cycle.
  • After the immersion the product will be discharged on the exit table.
  • At the exit table the excess film can be removed from the shrink wrap package if 1-2 seal has been used.
  • The 1-2 seal is highly recommended when shrink bags are being used.
  • For regular vacuum bags the immersion tank is not necessary.
  • Rugged all stainless steel construction
  • IP65 splash water proof controls
  • Pneumatic automatic movement of the vacuum chamber
  • Manual, semi-automatic or automatic operation
  • Sensor controlled 10 program digital vacuum control unit
  • Special cleaning position
  • Conveyor belt automatic controlled by the movement of the vacuum chamber and the immersion tank
  • Immersion tank has automatic water level and temperature control
  • The immersion rack can be removed to clean the immersion tan
Specifications

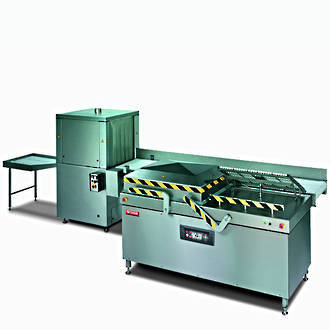

Automatic Double Chamber Vacuum Machine
  • Seal Length: 4 x 810mm
  • Work Height: 910mm
  • Useful Chamber Size: Width 810mm X Depth 680mm X Height 200mm
  • Outside Dimension: Width 2020mm X Depth 923mm X Height 1230mm
  • Weight: 525kg
  • Standard Voltage: 400-3-50Hz
  • Power Consumption: 5.5kW
  • Air Pressure: 6 bar - 100 Ltr p/m
Conveyor Belt CS-HV
  • Length: 2900mm
  • Width: 630mm
  • Height: 910mm
  • Dimensions: Length 2900mm X Width 630mm X Height 910mm
  • Weight: 255kg
  • Standard Voltage: 220 - 1 - 50hZ
  • Power Consumption: 800W
Immersion Tank ADT-HV 60/80
  • Water Content: 175 Ltr
  • Immersion Platform: 800mm X 560mm
  • Immersion Depth: 250mm
  • Dimensions: Width 954mm X Depth 920mm X Height 1698mm
  • Weight: 255kg
  • Standard Voltage: 400 - 3 - 50hZ
  • Power Consumption: 18 Kw option 30 Kw
Exit Table
  • Dimensions: Length 1265mm X Width 630mm X Height 850mm
Options
  • Digital Time Control: 10 programs
  • Sensor Control: Sensor/ H2O
  • Seal: Double/ Trenn/ 1-2/ Bi Active
  • Seal Configuration: 2 x L&L
  • Gas Option
  • Pump Capacity: 1 or 2 x 300m3
  • Cycle Time: 30 seconds
Seal Configuration

tv-atp-ll5000-v2-6
