Description

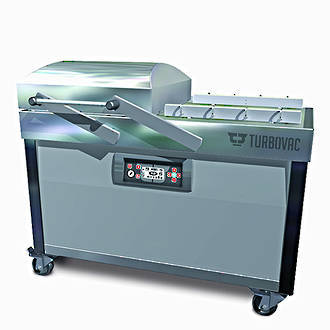

Turbovac new range of double chambers are reliable, durable and offer flexibility in volume production. The machines can be equipped with semi-automatic or automatic cover movement for an even more efficient production. The double chambers can also be equipped with an external pump.

Specifications
Seal Length: 4 x 820mm
Maximum Product Height: 250mm
Useful Chamber Size: Width 820mm X Depth 700mm X Height 250mm
Outside Dimension: Width 1810mm X Depth 1100mm X Height 1230mm
Standard Voltage: 400-3-50Hz
Power Consumption: 6.2 - 9.7 kW
Weight: 600kg

Options
Digital Time Control:10 programs
Sensor Control: Sensor/ H2O
Seal: Double/ Trenn/ 1-2/ Bi Active
Seal Configuration: 2 x L&L
Gas Option
Pump Capacity: 160m3 - 300m3
Cycle Time: 20-35 seconds

Seal Configuration

tv-dchamber-l30-v2-393
