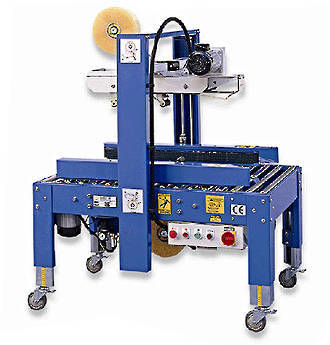

Fully-Auto Carton Sealer JP-501A

Fully-automatic carton sealer is for random box, machine width and height, to automatically adjust to meet different box sizes. Carton sealer tapes the box upper and lower smoothly at the same time.

Features

• For random boxes of sizes
• Fully-automatic adjust box width and height
• Heavy duty side belt drive
• Top and bottom sealing with adhesive tape
• Reliable tape head to seal box smoothly
• Table height adjustable from 570~770 mm
• Sturdy mast, strong construction
• Auto stop device

Specifications

• Tape Width: 2” or 3” (option)
• Sealing Size: 2”tape: L150~∞xW130~500xH120~500mm or  3”tape: L150~∞xW155~500xH120~500mm
• Belt Speed: 20 M/per min. (at 60Hz,motor ratio:1:18)
• Air Consumption: 6kgs/cm2
• Machine Size: L 1250 x W 910 x H 1315 m

Options

• Extension roller table L 500 mm
• Side safety mesh steel guard
• CE certified
• Carton Centering Device
