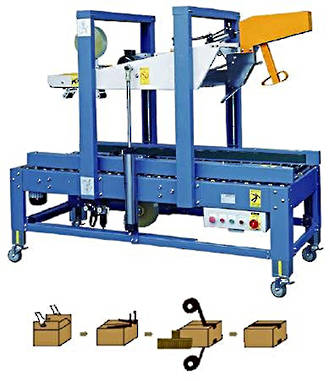

Fully-auto Carton Sealing and Flap Closing JP-503A
Fully-automatic Flap Folding and Sealing Machine with Side Belt Driven
Random Box Closing and Sealing Machines
Description
DescriptionWhen box travels in, first front and rear minor flaps folded, then major flaps folded.
Three flaps folding device.
Fully-automatic carton sealer is for random box, machine width and height automatically adjust to meet different box size. Carton sealer tapes the box upper and lower at the same time.
It's easy to integrate with existing in-line conveyor system.
Features
- Major and minor flaps folding, four flaps folder device
- For random boxes of sizes
- Heavy duty side belt drive
- Top and bottom sealing with adhesive tape
- Reliable tape head to seal box smoothly
- Table height adjustable from 570~770 mm
- Sturdy mast, strong construction
- Integrate with the conveyor or case erector
- Auto stop device
- Tape Width: 2” or 3” (option)
- Sealing Size: 2" tape: L 200~500 x W 130~500 x H 150~ 500mm or 3" tape: L 200~500 x W 150~500 x H 150~ 500mm
- Belt speed: 20 M/per min. (at 60Hz,motor ratio:1:18)
- Air Consumption: 6kgs/cm2
- Machine Size: L 1985 x W 950 x H 1625 mm
- Side safety mesh steel guard
- CE certified
