Description

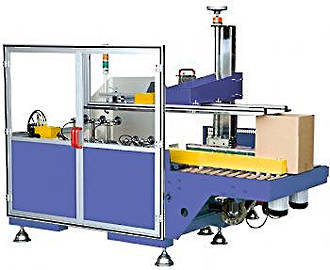

Suctioning cap pick up flat box from the magazine, then square the box.
After major and minor flaps folded, push box to side belt driven,
lower tape head seal the box, after that, box with bottom tape comes out.
Carton erector can integrate with JP-503, automatic flaps folding carton sealer into auto packaging line.
JP-503 just do minor and major flaps folding and taping upper.
Between JP-505V and JP-503, it can integrate with power roller conveyor.
It can combine with robot arm or loading manually depend on customers need.

Features
  • Integrate with JP-503
  • Reliable tape head to seal box smoothly
  • Equipped with detector for broken tape or tape failure
  • For uniform boxes of sizes
  • Easy to change boxes by crank handle with display
  • Touch screen panel, easy access control
  • Controlled by PLC, Mitsubishi, other brands option
  • Alarm device if air insufficient
  • Door, easy to access for maintenance
Specifications
  • Tape Width: 2” or 3” (specified)
  • Sealing Size: L250~500xW170~400 x H 90~500mm
  • Table Height: 650mm
  • Box Loaded in Magazine: 90~100 boxes
  • Machine Size: L 2310 x W2400 x H 1800 mm

Options
  • CE certified
  • Interlocked safety guard
